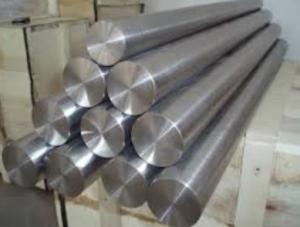

Tzm Bar Rod For Manufacturing Electric Vacuum Devices

Brand Name : FGD

Model Number : FGD M-002

Certification : ISO9001, ISO14000

Place of Origin : China

MOQ : 1KG

Price : USD32-USD38/KG

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20 Metric Tons per Month

Delivery Time : 3-5 days

Packaging Details : WOODEN CASE

Surface : Black, polished

Dimension : Dia(0.8-200mm)*L L<2.5m

Application : Furnace,electric light source parts

Purity : 99.95% Min

Certificate : ISO9001:2000

Products Situation : Polished,Sintered,Pressed,Forged

Shape : Customer's Request

Density : 10.2g/cm3

Contact Now

Tzm Bar Rod For Manufacturing Electric Vacuum Devices

TZM is a particle-strengthened molybdenum based alloy containing titanium, zirconium and carbon. TZC is an improvement of TZM and has good heat treatment hardening effect.

Advantages of TZM compared to pure molybdenum:
Above 1100°C tensile strength is about twice that of unalloyed molybdenum
Better creep resistance
Higher recrystallization temperature
Better welding properties.
Applications:
TZM is widely used in the aerospace, aviation and other industries. It could be used as nozzle material, valve body, gas piping materials, tubes in the gate material, die casting molds, extrusion dies and high temperature furnace heating element and heat shield etc.

General Properties:
Density: 10.16 g/cc at 20°C
Recrystallization Temperature: 1425 to 1595°C
Stress-Relief Temperature: 1 hour at 1095 to 1260°C
Liquidus Temperature: 2620°C
Chemical Composition:
TZM: Mo + 0.40~0.55%Ti + 0.06~0.12%Zr + 0.01~0.04% C
TZC: Mo + 1.2% Ti + 0.3% Zr + 0.1% C
Size:
We offers all kinds of TZM/TZC rods, plates and fabricated parts according to customers' drawings.

Grade Chief constituent % The impurity content is not more than %
Mo Ti Zr C Al Ca Fe Mg Ni Si C N O
Mo1
- - - 0.002 0.002 0.010 0.002 0.005 0.01 0.01 0.003 0.008
Mo2
- - - 0.005 0.004 0.015 0.005 0.005 0.01 0.02 0.003 0.020
moTi0.5
0.4-
0.6		 - 0.01-
0.04		 0.002 - 0.010 0.002 - 0.01 - 0.001 0.003
TZM
ASTM
bal-anc-e		 0.4-
0.55		 0.06-
0.12		 0.01-
0.04		 0.002 0.002 0.01 0.001 0.005 0.005 - 0.002 0.05
